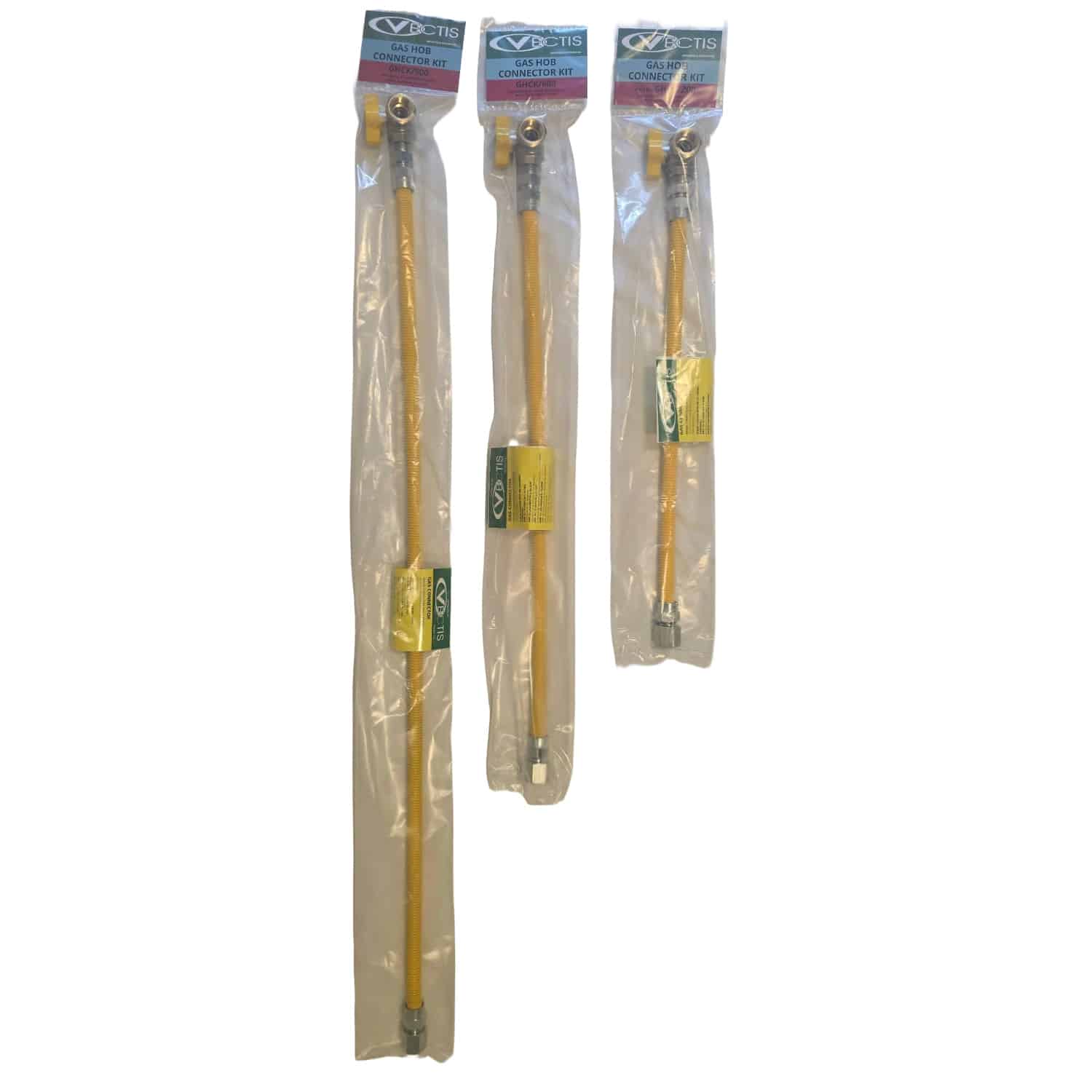

Original Gas Hob Kit (450, 600, 900mm) - Image 2

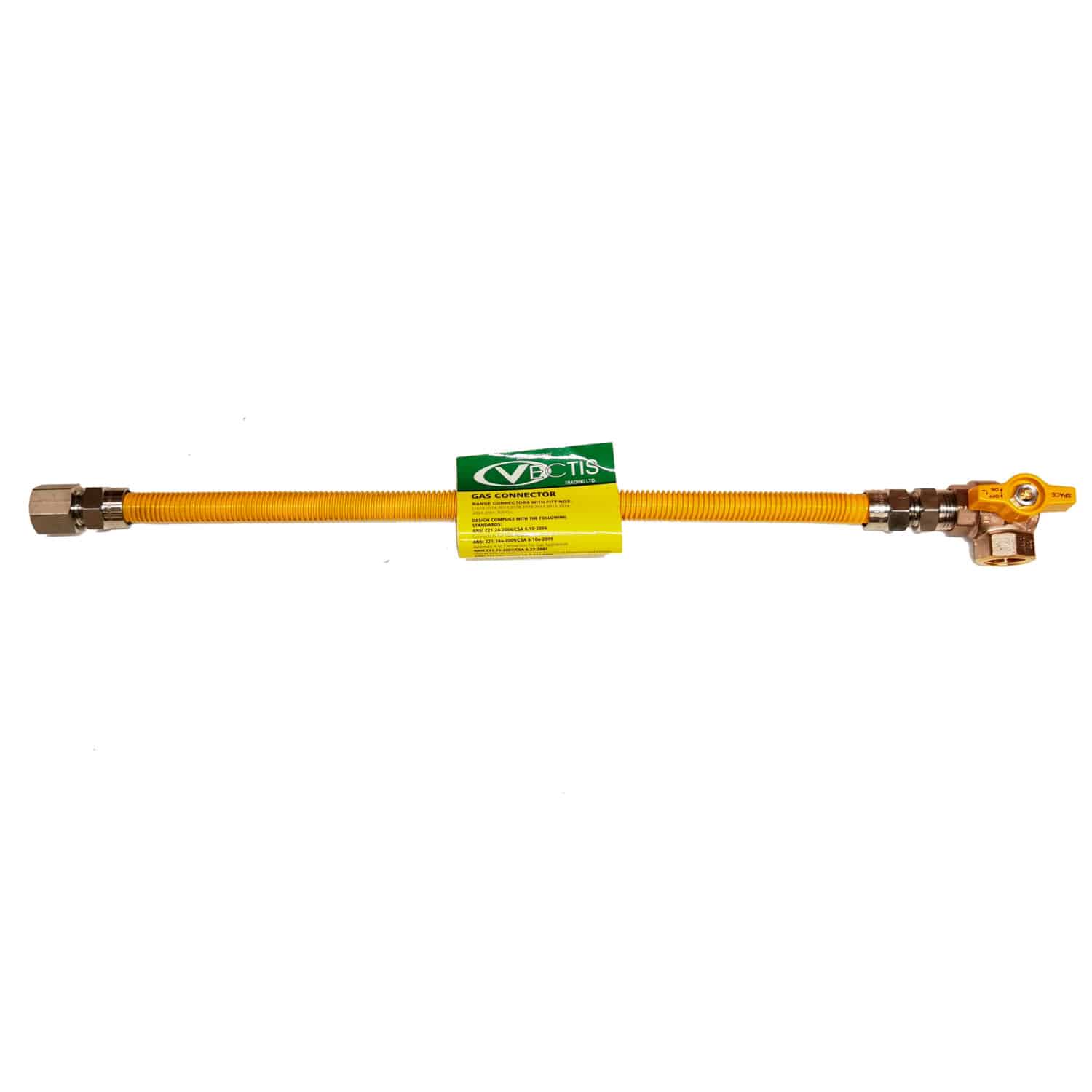

Original Gas Hob Kit (450, 600, 900mm)

Fixed Length Connector:   Connectors are for ease of installation and proper alignment of fixed on piping system appliances using natural gas or liquefied petroleum (LP) gases at pressures not to exceed 1/2 psi (3.5kPa).  Improper use must be avoided.

  • Lengths from 450mm to 900mm
  • Flared union on end
  • 10mm ID flex
  • 15mm end

Gas Valve: 15mm Angle F/F.  This ball valve incorporates an “L” manifold and a ball valve in a single item.

  • Ball:  Special self-washing system that avoids stagnation
  • Seals:  Three piece upper sealing system.  1 PTFE ring – High pressure.  2 O-ring – Low pressure.
  • Threaded end connections:  Standard female UNI ISO 228/1.  Nut and Tail (metallic seat + O-ring)
  • Temperature limits: -15 degrees Celsius to 60 degrees Celsius
  • Pressure limits:  MOP5 (FF)
  • Bore:  Full
  • Stem: Anti blow out
  • Seats:  High resistance PTFE
  • Standard: EN 331
  • Italian made Quality Product.
